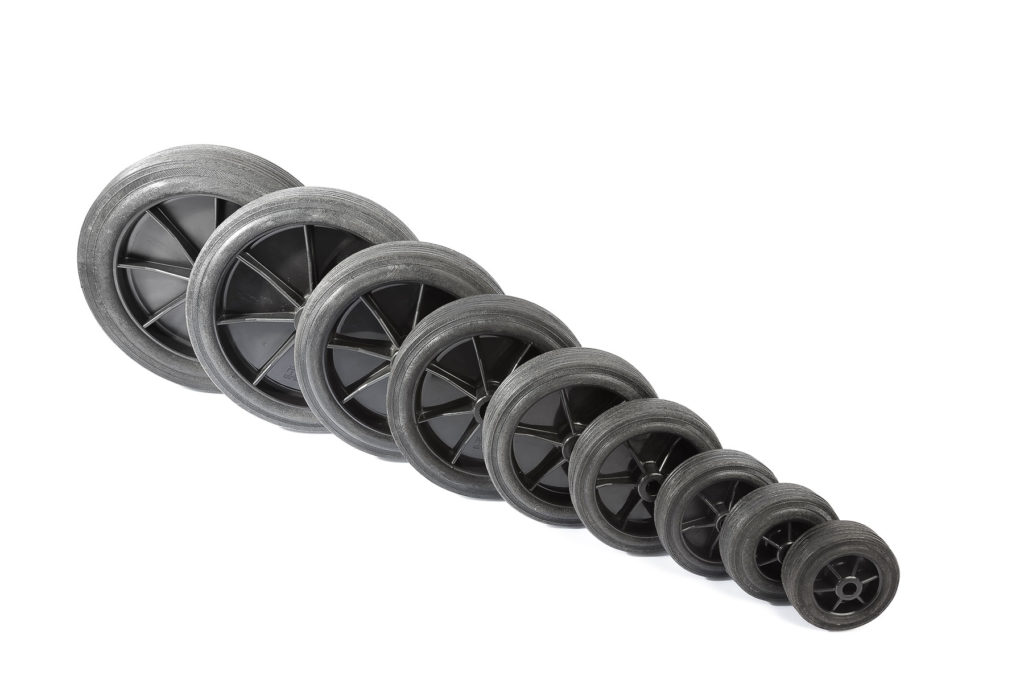

SM SERIES – RT RICICLA

This is an industrial wheel with a robust polypropylene rim and RT RICICLA tread coating, to be used in the absence of hydrocarbons. It has good atmospheric resistance.

This series of traditionally shaped wheels is the most complete of the entire production. Some intermediate sizes are also available such as 90 mm or 230 mm and special series (SMX) which differ from the SM series in the length of the central hub.

Due to their two-faced shape, all these items are suitable for mounting on fixed and rotating castors. These wheels are suitable for various fields of use such as: vacuum cleaners, cleaning trolleys, compressors, tillers, castor-wheels, among others.

Note: the wheels of the SM series are also available in grey non-marking rubber.

SM SERIES - ANTITRACCIA
Item D b L d Weight g Capacity Kg
SM 80
 80 28 35 10 92 60
SM 90
 90 28 35 10 127 60
SM 100
 100 28 35 8-10 120 60
SM 125
 125 35 40 12-15-16 218 70
SM 150
 150 38 40 12-15-16 342 80
SM 175
 175 45 57 20 530 90
SMX 175
 175 45 53 15-16 530 80
SM 200
 200 45 57 20-22 720 100
SMX 200
 200 45 53 16 665 80
SM 230
 230 45 57 20-25 880 120
SM 250
 250 50 57 20-25 1220 120
