SP SERIES – RT ANTITRACCIA
Types Of Covers
S-Satin Cover
U-Half-Moon Cover
W-Criss Crossed Cover
T-Trident Cover
L-Glossy Cover

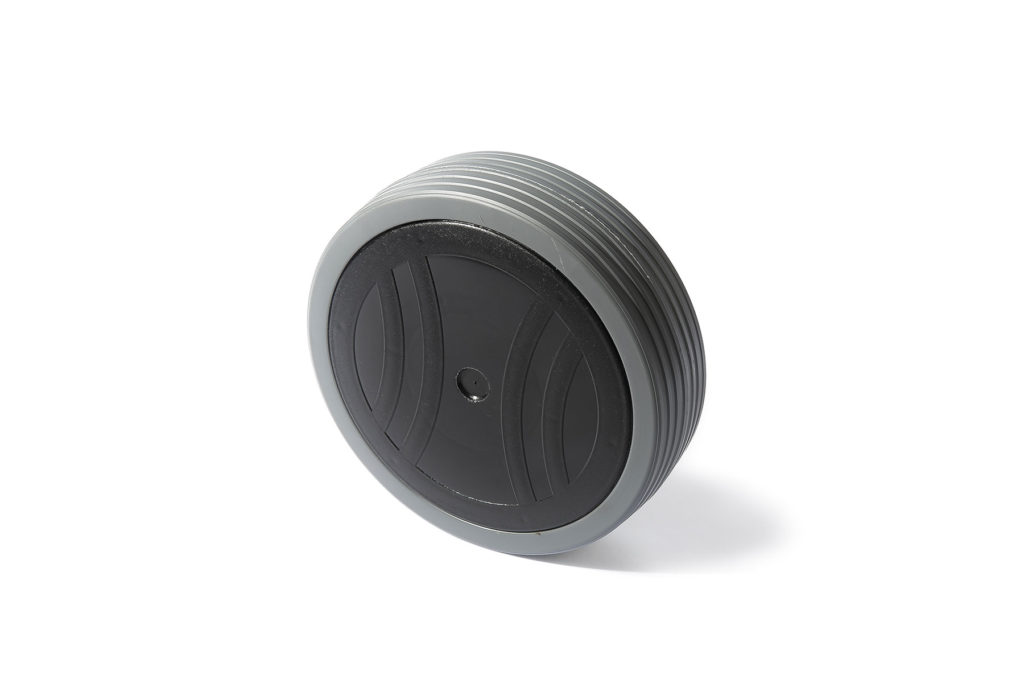

This is an industrial wheel with a robust polypropylene rim and RT ANTITRACCIA tread coating. It can be used even in the presence of light hydrocarbons. It has a good resistance to atmospheric agents.
This series with a smooth and clean shape finds its natural use in machines equipped with enclosures.
The closed shape of the wheel and the particular design of the tread, very open and deformed, prevent the accumulation of dirt during normal use.
The standard designs of the covers (front side) are four but they can also be customized according to the customer’s design and colored by sample.
Note: the wheels of the SP series are also available in RT RICICLA rubber.
| Item | D | b | L | h | d | Weight g | Capacity kg | Cover |
|---|---|---|---|---|---|---|---|---|
| SP 150 GR | 150 | 45 | 44 | 8 | 12 | 300 | 60 | S-U |
| SP 175 GR | 175 | 48 | 40 | 11 | 12-15 | 475 | 70 | S-U |
| SPL 175 GR | 175 | 57 | 40 | 25 | 12-15 | 508 | 70 | S-U |
| SP 200 GR | 200 | 45 | 47 | 12 | 15-16-20 | 530 | 80 | S-T-U |
| SPL 200 GR | 200 | 54 | 47 | 12 | 15-16-20 | 615 | 80 | S-T-U |
| SP 220 GR | 220 | 57 | 53 | 15 | 15-25 | 695 | 80 | S |
| SP 250 GR | 250 | 52 | 57 | 12 | 15-20-25 | 850 | 80 | W |
